File name: aacP1010073cupdiff.jpg
File size: 112.59 KB
Exposure time: 1/320 seconds
F stop: 8.00
Focal length: 6.30 mm
Camera model: C740UZ
Additional Information:

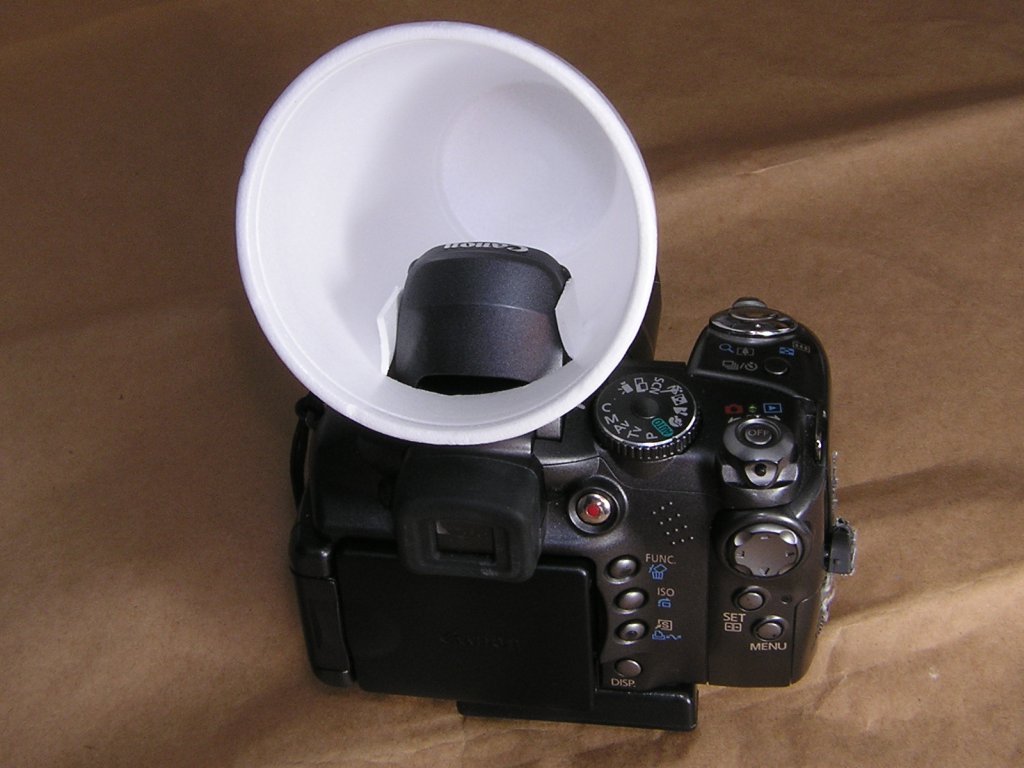

This shows how the cup is cut to fit. For this camera it works best when cut as shown. Your camera may require a different method. If you look closely, you can see that I compressed (simply smashed it between my fingers) the area where the flaps will have to bend. This prevents (or helps to prevent) the foam from fracturing when it's bent. If desired, a piece of taps can be applied across the back of the flash head and onto the flaps if the cup doesn't want to stay in place.
